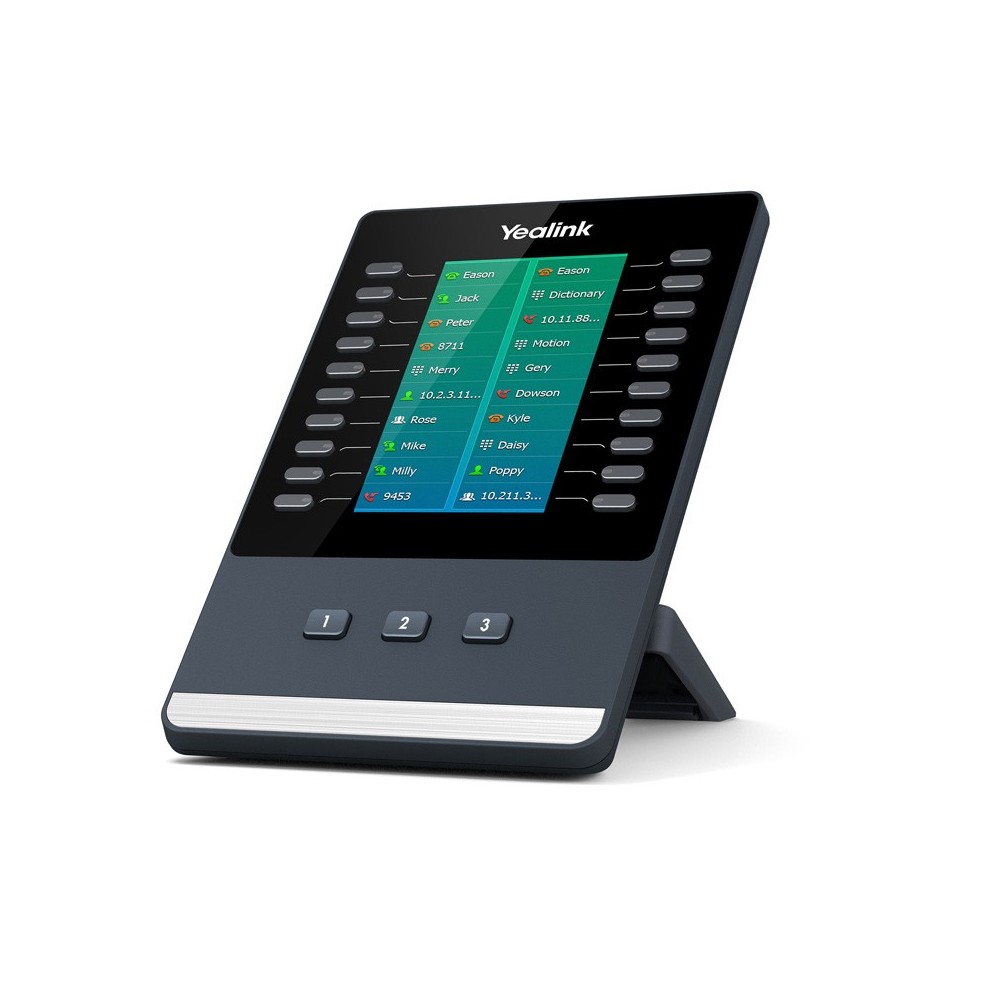

A High-performance Color-screen Expansion Module for Yealink T5 Series.
The Yealink EXP50 Color-screen Expansion Module for Yealink T5 Series IP phones, including SIP-T58V/SIP-T58A/SIP-T56A/SIPT54S/SIP-T52S, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call-handling capabilities. For example, three pages of 20 flexible buttons shown on the display can be programmed up to 60 various features. The functionality of Yealink T5 Series IP phones will also be extended by the EXP50, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP50 Color-screen Expansion Module is an ideal solution for receptionists, administrative assistants, and contact center workers and gives you the ability to monitor contacts and manage a large volume of calls with ease.
Key Features and Benefits
User-friendly Structure Design:
With a 4.3-inch color screen, the Yealink EXP50 expansion module is intended to bring a fresh visual experience and an easy operating experience to you. Its new design for the Stand enables you to adjust between two lying angles easily even without disassembling it. To ensure higher reliability of data transmission and a higher speed of data refresh, a USB cable is chosen to connect the EXP50 expansion module to Yealink T5 Series IP phones. Moreover, after connecting to the IP phones successfully, the remaining USB port in the back of EXP50 can also be used to realize the phone’s extended functions, for example, call recording via USB flash drive, etc.
Intuitive Visualization:
A 4.3-inch 272x480-pixel color screen greatly enriches your visual experience. The color icons for DSS keys, and the feature of Wallpaper and Screensaver, all offer you a new operating experience as well as allow you to customize the EXP50 in your style. More than that, it has already come ready for the Avatar Display on the SFB and UC platforms. Its 3 independent control keys with illuminated LED on the bottom are used for fast switching to the corresponding page.
High Expandability:
The Yealink T5 Series IP phones can be fully equipped with up to three EXP50 Colorscreen Expansion Modules while adding 180 additional buttons at most. Three pages of 20 flexible buttons with dual-color LED shown on the display can be programmed up to 60 various features that can be used for speed dialing, BLF/BLA, call forward, transfer, etc. Thus, it will help you effectively manage the high volume of concurrent calls, effortlessly monitor calls, and extremely boost personal productivity.
Display:
- 4.3" 272x480-pixel color display with backlight
- 16-bit depth color
- Three-page views are possible
- Different color icons for each function are shown on the LCD
Features Keys and Indicators:
- 20 physical keys each with a dual-color LED
- 40 additional keys through the page switch
- 3 independent control keys with illuminated LED are used for fast switching pages
- Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, XML Browser...
Features:
- Wallpaper
- Screensaver
- Power saving
- Avatar Display on SFB and UC platform (pending)
- Stand with 2 adjustable angles
- For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.
- Up to three EXP50 can be attached to any Yealink T5 Series IP phones
- USB port (2.0 compliant) for data in and out
- USB port (2.0 compliant) for wired/wireless USB headset Wi-Fi through WF40, USB call recording through USB flash drive
- Dimension (W*D*H*T): 196.5mm*124.0mm*137.5mm*42.6mm
- Applies to Yealink T5 Series (SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S)
- Operating temperature: -10~50°C (+14~122°F)
- Operating humidity: 10-95%
Package Features:
- Yealink EXP50 Color-screen Expansion Module
- Stand
- Connecting Sheet
- USB Cable
- Screwdriver
- Screws
- Quick Start Guide
- Qty/CTN: 10 PCS
- N.W/CTN: 6.0 kg
- G.W/CTN: 6.598 kg
- Giftbox size: 212mm*148mm*90mm
- Carton Meas: 480mm*310mm*228mm
